Power Generation
Up to 17,500 W continuous, 26,500 W surge, plus 8 kW three-phase.
Construction & Infrastructure
Power the tools, weld the steel and run the air tools from one machine while the structure goes up.
Learn morePower • Weld • Air • Anywhere
One machine. Multiple jobs. Global opportunity.

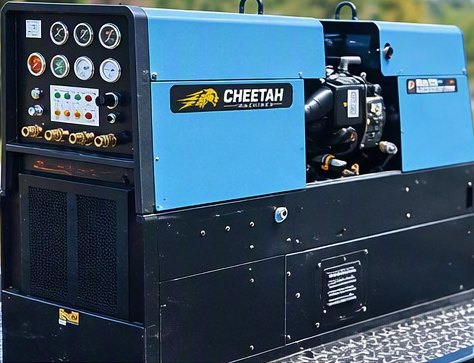

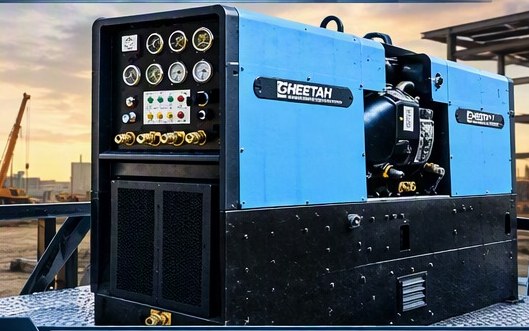

Cheetah is a rugged, multi-function mobile productivity platform that puts a generator, a welder and an air compressor into one 580 lb machine. It is built for the contractors, utilities, farms, mines and governments that build Africa and the world.
- Patented concept
- Built to ISO 9000 specs
- −40°F to +140°F
3-in-1
Power, welding & compressed air on one platform
Nigeria hub
Ghana launch market
Welding
Up to 350 A multi-process welding: Stick, TIG, MIG and Arc.
Compressed Air
About 40–80 CFM @ 150 PSI from an IR CE55 rotary screw.
Water Purification Next
A planned add-on that makes Cheetah a 4-in-1 machine for remote communities.
The Cheetah advantage
Three essential tools. One powerful machine.
Worksites usually move a separate generator, welder and compressor, and each one needs its own fuel, transport, maintenance and operator. Cheetah puts all three on one trailer-mountable platform. That means fewer machines to mobilize, lower total cost and more work done per day.
- No belts, no pulleys, no chains, no adjustments
- Cold start, with a factory-standard intake heater and oil-pan heater
- Remote shut-off with a 50 ft range
- Trailer mountable, with dual lifting eyes
- Compressor at 1.1 full power output, regulated 0–150 PSI
- Deutz BF4M2011 turbo, oil-cooled 4-cylinder engine
Higher productivity
Lower total cost
Less equipment to maintain
Cleaner, stronger tomorrow
0Continuous power
0Multi-process welding
40–80CFM @ 150 PSI
0Total machine weight
1.6Gal/hr @ 20 kW
0@ 1,800 RPM
Machine comparison
Same job. A fraction of the weight.
Cheetah against the Lincoln SAE-400 WELD'N and the Big Blue Air Pak CC/CV. Figures are taken from the Cheetah comparison sheet.
Powering Africa naturally
One in Africa. Cheetah Power. Brighter tomorrow.
At 580 lbs, Cheetah weighs a fraction of the competition, which makes it light enough to reach villages, schools and clinics far from the grid. The Cheetah Power Initiative brings that power to the communities that need it most.
- From speed comes energy.
- From energy comes hope.
- From hope comes change.
Clean energySustainable power for every community
Stronger communitiesPowering schools, homes and healthcare
Brighter futuresLighting minds, building tomorrow
Together, let's pull Africa forward.
Weight (lbs)
Cheetah is about 76% lighter than the Lincoln SAE-400.
Fuel use (gal/hr)
Cheetah delivers more output for less fuel than the Lincoln.
Footprint (H×W×D in)
- Cheetah32 × 18 × 68
- Big Blue Air Pak43 × 28.5 × 67.5
- Lincoln SAE-40050 × 28 × 83
The most compact package in the class, and the only one with a remote shut-off.
| Machine comparison | Cheetah | Lincoln SAE-400 WELD'N | Big Blue Air Pak CC/CV |
|---|---|---|---|
| Weld process | Stick, TIG, MIG, Arc | DC Stick & TIG | DC Stick, TIG and MIG |
| Rated weld output | 500 A @ 40 V = 20 kW 100% 600 A @ 44 V = 26.4 kW 40% | 400 A @ 36 V = 14.4 kW 60% | 500 A @ 40 V = 20 kW 100% 600 A @ 44 V = 26.4 kW 40% |
| Weld output (current) | 225 A presently | 80–575 A | 20–750 A |
| Weld output (voltage) | 14–40 V | — | 14–40 V |
| Arc control | Arc Drive | Not available | Arc Drive |
| AC while welding (peak) | 5.5 kW peak | 3 kW Type 1 | 5.5 kW |
| AC while welding (continuous) | 4 kW | Not available | 4 kW |
| 120 V receptacles | (1) 20 A GFCI duplex | (1) 15 A duplex, fused | (1) 20 A GFCI duplex |
| Over-voltage protection | Circuit breaker protected | Not available | Circuit breaker protected |
| 240 V receptacles | (1) 30 A Twistlock, L6-30 | (1) 15 A duplex, fused | (1) 30 A Twistlock, L6-30 |
| 3-phase AC power (not welding) | 70 A @ 120 V; 35 A @ 240 V, 8 kW continuous | Not available | Available on Deluxe model |
| Air compressor | IR CE55 rotary screw | Reciprocating | IR CE55 rotary screw |
| Air output | 40 CFM @ 90 PSI 100% | 35 CFM @ 95 PSI 60% | 60 CFM @ 100 PSI 100% |
| Engine | Deutz BF4M2011 oil cooled, turbo 4-cyl | Perkins 1004.42 liquid cooled, 4-cyl | Deutz BF4M2011 oil cooled, turbo 4-cyl |
| Engine RPM | 64 hp @ 1,800 RPM | 71 hp @ 1,725 RPM | 64 hp @ 1,800 RPM |
| Automatic idle | Standard | Standard | Standard |
| Sound @ 23 ft (idle / full) | 70 dB / 78 dB | Not available | 70 dB / 78 dB |
| Auto engine shutdown | Oil temp, oil pressure | Coolant temp, oil pressure | Oil temp, oil pressure |
| Engine instrumentation | Fuel gauge, hour meter, oil temp, oil pressure, air pressure, battery voltage | Battery, hour meter, water temp, oil pressure, air pressure, comp oil pressure | Fuel gauge, hour meter, oil temp, oil pressure, air pressure, battery voltage |
| Engine service side | Right side, removable | Left side | Right side, removable |
| Fuel consumption | 1.6 gal/hr @ 20 kW 100% | 2.2 gal/hr @ 14.4 kW 60% | 1.6 gal/hr @ 20 kW 100% |
| Fuel tank | 25 gal (95 L) top fill | 22.5 gal (85.1 L) top fill | 25 gal (95 L) top fill |
| Dimensions H×W×D | 32 × 18 × 68 in | 50 × 28 × 83 in (1270 × 711 × 2109 mm) | 43 × 28.5 × 67.5 in (1092 × 724 × 1715 mm) |
| Weight | 580 lbs | 2,428 lbs (1,101 kg) | 1,931 lbs (875 kg) |
| Third-party certification | Built to ISO 9000 specifications | None | CSA, MSHA |
| Operational temperature | −40°F to +140°F | — | — |
| Intake manifold heater 12 V | Factory standard | Optional ether | Field 043959 |
| 120 V oil pan heater | Factory standard | None | Field 195086 |
| Welding meters | Field 195131 | None | Field 195131 |
| Battery lockout/tagout disconnect | Field 195120 | None | Field 195120 |
| Vandalism lockout | Field 195118 | None | Field 195118 |
| AC/DC/battery charge 12/24 | Field 195148 | None | Field 195148 |
| Generator | 70 A @ 120 V; 35 A @ 240 V, 8 kW continuous | None | N/A |
| Muffler | None | None | Factory standard |
| Additional features | No belts • No pulleys • No chains • No adjustments • Cold start • Remote shut-off (50 ft) • Trailer mountable • Dual lifting eyes | None | None |
| Future models | Diesel • Propane • PTO • Agricultural • Hydraulic | None | None |
Built for real work
across every sector
Industrial & Maintenance
On-site repair and shutdown maintenance without hauling three separate machines to the plant floor.
Learn more
Utility & Field Service
A compact, 580 lb platform for line crews and field technicians working far from the grid.
Learn more
Emergency Response & Government
Rapid-deploy power, cutting, welding and air for disaster recovery and public-safety teams.
Learn more
Agriculture & Rural Operations
Repair equipment in the field, run irrigation pumps and, with the planned purifier, provide clean water.
Learn moreConsumer
Contractors, farms, rural owners and small businesses
Government
Municipalities, utilities, military and emergency response
Commercial & Industrial
Construction, energy, mining, manufacturing and telecommunications
The opportunity
Three large, growing markets.
One machine that serves all of them.
Cheetah sells into the generator, air-compressor and welding markets at once. Together they form a global opportunity of more than $87 billion.
Generator market$24.45Bby 2025 • CAGR 5.7%
Air compressor market$43.54Bby 2025 • CAGR 4.7%
Welding market$19.76Bby 2025 • CAGR 5.3%
Combined global market> $87BPower + Weld + Air
$285.5M
Africa mobile air-compressor market in 2024, growing at a 3.9% CAGR to 2030
$570M → $805M
African air-compressor market, 2023 to a projected 2030
~600M
Africans who still lack electricity access, according to the IEA
$155B / yr
Infrastructure investment Africa needs each year through 2040
4.9%
Annual growth of Africa's construction-equipment market, 2025–2031
42%
Share of private capital deployed in Africa since 2023 that went to infrastructure
Sources cited in the Cheetah investor material: Africa Mobile Air Compressor Market Size Report 2030; Africa Air Compressor Market estimate; International Energy Agency; African Union, Africa's Development Dynamics 2025; Global Private Capital Association; 2026 Africa construction-equipment industry analysis; World Bank Open Data; Tracking SDG7: The Energy Progress Report 2025. Market figures cover adjacent sectors and are not Cheetah's directly addressable market.
Cheetah Africa
Powering people. Building Africa.
Cheetah starts in West Africa. Ghana is the proposed demonstration market, with Nigeria as the regional manufacturing and distribution hub. The plan is to prove the commercial model there, build a West African corridor, and then move into East and Southern Africa.
Cheetah Africa Demonstration Hub
Ghana had Africa's largest announced greenfield project in 2025, an estimated $5B chemicals investment (UNCTAD, via Business Insider Africa). The first customers would be:
The West African corridor
Once the model is proven in Ghana, Cheetah evaluates neighbouring markets one at a time: Nigeria, Côte d'Ivoire, Togo, Senegal and others. It does not try to cover the whole continent at once. The Nigeria hub, near the Lekki Deep Sea Port, handles port intake, regional distribution and local delivery.
East & Southern Africa
East Africa has the continent's largest infrastructure investment need relative to GDP, at 9%, followed by Central Africa at 8% (African Union). Target markets include Kenya, Tanzania, Rwanda, Ethiopia, South Africa, Zambia and Mozambique.
20–30direct jobs
(initial phase)
(initial phase)
0indirect jobs
(suppliers, services)
(suppliers, services)
3rollout phases
across the continent
across the continent
Phase 1
Phase 2
Phase 3
Nigeria hub
01
Equipment
Generator + welder + air compressor, with water purification planned next.
02
African service network
Dealers, parts, technicians and training across the corridor.
03
African industrial platform
Local assembly, government partnerships, contractor programmes and infrastructure projects.
“Cheetah is synonymous with Africa. When I was on the ground in the 2000s, Africa embraced me, and the construction concept I was delivering to government, with tremendous respect. Awareness today is far greater than it was then. This machine, patented and developed by a Black man, will be embraced by all of Africa. Let's go make a difference.”
Global supply chain network
Two continents. One mission.
Two hubs: Denton, Texas for U.S. manufacturing, R&D and global distribution, and Nigeria for regional manufacturing, distribution and growth across the continent. From there, Cheetah expands into Asia and Latin America.
US
Denton, Texas: U.S. hubManufacturing • R&D • global distribution • 125-acre campus • I-35 / I-20 / I-45 • DFW air
NG
Nigeria: Africa hubManufacturing • regional distribution • 125-acre campus • Lagos/Ogun corridor • Lekki Deep Sea Port
Next markets to investigate
- 1IndiaConstruction, infrastructure, agriculture, utilities
- 2IndonesiaRemote worksites, mining, construction, industrial maintenance
- 3PhilippinesDistributed field ops, construction, emergency preparedness
- 4MexicoConstruction, industrial contractors, agriculture, field maintenance
- 5BrazilAgriculture, mining, construction, remote operations
- 6PeruMining, construction, remote field service
- 7ColombiaInfrastructure, agriculture, regional field operations
- 8South AsiaNepal and other infrastructure/energy-development markets
- 9Central AsiaUtility, construction and remote infrastructure
- 10CaribbeanConstruction and distributed field equipment
Electricity-access rates alone don't measure Cheetah demand. India and Indonesia both report 99.9% access (World Bank, 2024), yet remote construction and industrial sites still need mobile equipment.
Estimated transit times
- Denton → Canada1–3 days
- Denton → Caribbean5–10 days
- Denton → South America12–25 days
- Denton → Africa (ocean)14–21 days
- Air freight (high-value / express)1–3 days
RoadI-35, I-20, I-45
RailBNSF / Union Pacific
OceanHouston, New Orleans, Savannah
AirDFW International
Phase 1
Africa
Ghana → West Africa → East & Southern Africa
Phase 2
Asia
India → Indonesia → Philippines
Phase 3
Latin America & Caribbean
Mexico → Brazil → Peru → Colombia
Phase 4
Global scale
North America, Europe, Middle East, Central Asia, Australia & Pacific
Investor overview
A scalable mobile productivity platform
An illustrative 5-year global growth model. It assumes an average selling price of $15,000 per machine and a 48% gross margin. These are planning assumptions, not forecasts.
5-year illustrative growth model
| Units | Revenue* | Gross profit* | |
|---|---|---|---|
| Year 1 | 1,100 | $16.5M | $7.9M |
| Year 2 | 2,500 | $37.5M | $18.0M |
| Year 3 | 5,000 | $75.0M | $36.0M |
| Year 4 | 7,500 | $112.5M | $54.0M |
| Year 5 | 10,000 | $150.0M | $72.0M |
Five-year cumulative illustrative volume: 26,100 machines.
Scenario calculator
Move the sliders to explore illustrative annual scenarios.
Revenue multiple
Annual revenue$75.0M
Gross profit$36.0M
Indicative company value$150.0M
These are illustrative enterprise-value scenarios, not a current or projected market capitalisation. Real valuation depends on EBITDA, expenses, debt, cash, capital structure, IP, comparable-company multiples and market conditions.
Africa rollout scenarios
Ghana pilot100units / yr$1.5M rev • $720K GP
Ghana growth250units / yr$3.75M rev • $1.8M GP
West Africa500units / yr$7.5M rev • $3.6M GP
Regional scale1,000units / yr$15M rev • $7.2M GP
African expansion2,500units / yr$37.5M rev • $18M GP
Large-scale Africa5,000units / yr$75M rev • $36M GP
Investment vision
The opportunity is bigger than selling equipment.
The long-term plan is an international platform covering manufacturing and assembly, distribution, dealer networks, training, parts and service, and strategic partnerships.
- Manufacturing & assembly
- Distribution
- Dealer networks
- Training
- Parts & service
- Strategic partnerships
Total equipment investment
$0
A fully equipped facility to fabricate, assemble, test and ship Cheetah machines

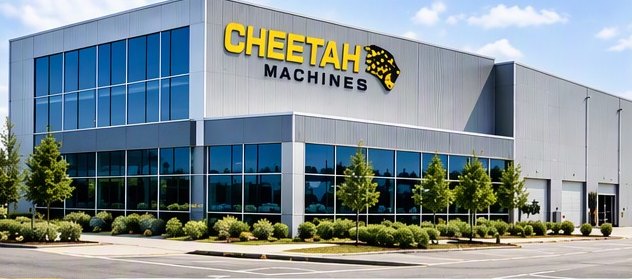

Manufacturing facility & equipment plan
From raw materials to ready-to-work machines
Production line
$25,00010 workstations, tools, lighting, compressed air, rolling carts, bar-code tracking, safety and E-stop systems.
Shop compressor system
$14,710Gardner Denver rotary screw (125 PSI @ 75 CFM, 3-phase), air receiver, dryers, filters, Legris Transair piping.
Welding booth
$13,560Miller 300 DX (MIG/TIG/Stick), Miller Spectrum 625 plasma cutter, oxy-acetylene, ventilation and filtration.
Sheet metal / R&D shop
$5,390Shear, brake, roll and notcher, hydraulic press, band saw, drill press, grinders and material racks.
Industrial paint booth
$11,83012' × 12' × 10' powder-coat booth, sprayers, HazMat storage, breathing apparatus and fire suppression.
RTO / testing booth
$7,400Exhaust venting, 12 V jump starter, fuel tanks (gas, LP, diesel), electronic test equipment and test benches.
Manufacturing process
- Fabricate
- Assemble
- Weld
- Finish
- Test
- Inspect
- Ship
Facility requirements
A modern facility built for a brighter, more productive future.
50,000–100,000Square feet
20–25 ftCeiling height
Overhead craneCrane assemblies
6 docks3 incoming • 3 outgoing
10 restrooms5 men • 5 women, across all areas
3–6 stationsExhaust venting to outside
Clean roomTemperature-controlled solid-state parts storage
High-speed networkFacility-wide, office and floor
Paint boothPowder-coat process
WarehouseWalled-off finished-goods storage
Office & administration
Operations you can see from the floor
A glassed-off, soundproof front office and a two-story administration level that overlooks the manufacturing floor. It is wired with high-speed networking for engineering, logistics, sales and investor operations.
- Multi-screen operations & logistics command centre
- Engineering and design workstations
- Front office for shipping, receiving and QA
Africa jobs impact
Building more than machines. We're building opportunity.
Local jobs, local skills, real opportunity. Every Cheetah facility invests in people and builds stronger communities.
20–30Direct jobs (initial phase)
50+Indirect jobs: suppliers, services, logistics
SkillsTraining, apprenticeships, technical skills
LocalProduction reduces imports and builds supply chains
Eezinet • FCC-licensed spectrum
Adding broadband to the Cheetah platform
Eezinet is one of the companies acquired to add broadband to Cheetah's technology and to the African market. Its FCC spectrum licence supports a full range of connected services.
5G high-speed broadband
Mobile & fixed phone
Video streaming
TV network services
Radio services
Data services
Spectrum licenceWQCS 449Scottsbluff, Nebraska BTA
3 of 12BTA counties covered
8,431Population
84,310MHz-pops
$23 × 84,310 MHz-pops
$0
Licence valuation
Garden County Seat: Oshkosh
Pop. 2,292 (2000). 1,731 sq mi total area, of which 1,704 sq mi is land and 27 sq mi (1.54%) is water.
Grant County Seat: Hyannis
Pop. 747 (2000). 783 sq mi total area, of which 776 sq mi is land and 7 sq mi (0.89%) is water.
Sheridan County Seat: Rushville
Pop. 6,198 (2000). 2,470 sq mi total area, of which 2,441 sq mi is land and 29 sq mi (1.17%) is water.
Valuation prepared by Bernard Gaiter. County data: U.S. Census Bureau via Wikipedia.
See it in action
Built to perform. Engineered to lead.
Watch: Cheetah Machines
Read the publication
The Cheetah Vision
Flip through the Cheetah Vision publication below, or open it full screen in a new tab.
Federal Republic of Nigeria • Corporate Affairs Commission
Greatland Africa Development Company Limited
- Company registration no.
- RC 9945251
- Incorporated
- 17 October 2026, Abuja
- Type
- Private company limited by shares
- Act
- Companies and Allied Matters Act 2020
Our African entity
Registered in Nigeria. Built for Africa.
Greatland Africa Development Company Limited is the incorporated Nigerian company that carries the Cheetah mission on the continent. It anchors local manufacturing, government partnerships, dealer and service networks, and the Nigeria hub on the Lagos/Ogun corridor.
- Incorporated under CAMA 2020
- Partner entity for governments, contractors and distributors
- Home of Africa jobs and skills programmes
Investor infographics
The Cheetah story at a glance
Tap any infographic to view it full size.
Join the movement.
Everyone can build.
Get in touch
Let's go make a difference.
Investors, distributors, governments and contractors are welcome. Tell us how you would like to work with Cheetah Machines.
- U.S. hubDenton, Texas, USA
- Africa hubLagos/Ogun corridor, Nigeria
- MarketsAfrica • Asia • Latin America • Caribbean
